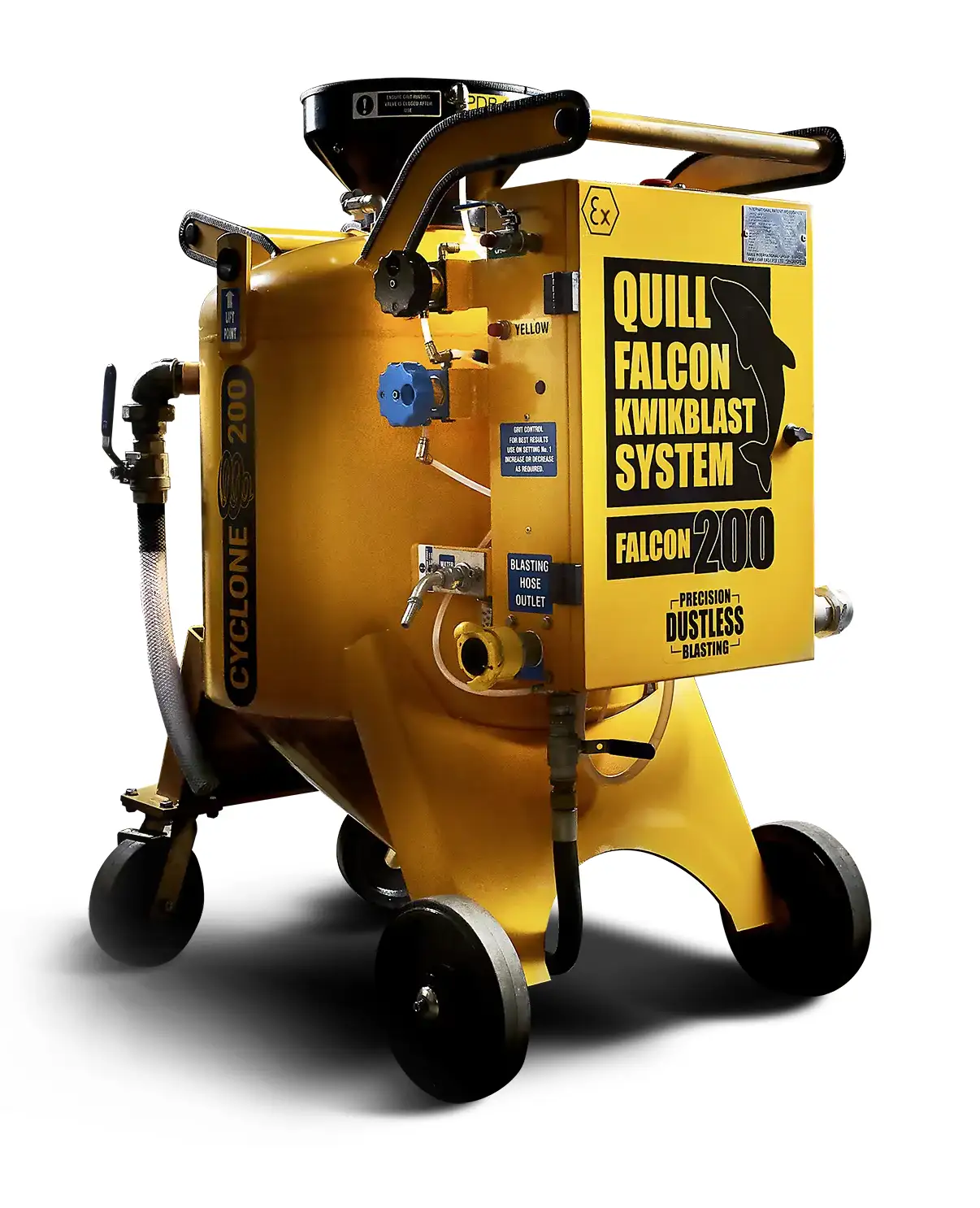

Quill FalconCyclone 200

The Quill Falcon Cyclone 200 is the most powerful of the Quill Falcon Systems due to its size and ability to be used with up to a 600cfm compressor making for effortless blasting in demanding conditions. The extra-large 230 litre vessel capacity means the Quill Falcon Cyclone 200 can hold more blasting media which therefore allows a longer amount of time between refills making the system ideally suited for blasting large areas on big projects.

The Quill Falcon Cyclone 200 is used throughout the worlds ship yards for large projects on Floating, Production, Storage and offloading vessels (FPSO’s), Very Large crude Carriers (VLCC’s), Ultra Large Crude Carriers (ULCC’s) and Warships.

Dimensions

Height – 1280mm
Width – 670mm
Depth – 1020mm
Unladen Weight – 209kg
Laden Weight – 584kg (garnet)

Blast Media

No. of 25kg bags to fill vessel
Garnet – 15 bags
Iron Silicate – 11 bags
Glass – 9 bags

Specifications

Water Pressure & Flow – Standard tap pressure & flow
Water Consumption – 150 – 250ml per minute
Grit Type – Standard particle blast media
Grit Consumption – 0.3 – 0.8kg per minute
Grit Refill – Up to 18 hrs between refills
Air Supply – 250 – 400cfm
Air Supply Hose – ¾ or 2 inch
Blast Hose Size – 1 or 1¼ inch
Blast Hose Max Length – up to 250m
Blasting Pressure – 20 – 120psi

Weights and dimensions are based on current models in manufacture. Cyclone Trailer System laden weight = full vessel of grit and water and full tank of diesel. Consumption rates based on average dosing settings. Water consumption taken from water used at nozzle. Up to 1 litre of water per minute will be required to keep vessel pressurised. Grit and water consumption may vary according to size of compressor, dosing valve setting, size of nozzle and type of blast media used. Falcon 30 weighed with standard (non ATEX) wheels.
